M22M-DL-W-K11-230W
Industrial Pushbutton Switch, RMQ-Titan M22 Series, 22.3 mm, SPST-NO, SPST-NC, Momentary, Round

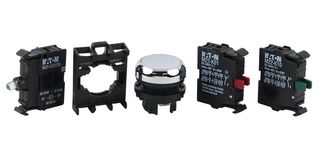

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON CUTLER HAMMER
Manufacturer Part NoM22M-DL-W-K11-230W
Newark Part No.67X3791
Product RangeRMQ-Titan M22 Series
Also Known AsGTIN UPC EAN: 786685861302
Technical Datasheet
Available to Order
Delivery estimated post order confirmations.You will be charged on dispatch.
| Quantity | Price |
|---|---|
| 1+ | $160.550 |
Price for:Each
Minimum: 1
Multiple: 1
$160.55
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEATON CUTLER HAMMER
Manufacturer Part NoM22M-DL-W-K11-230W
Newark Part No.67X3791
Product RangeRMQ-Titan M22 Series
Also Known AsGTIN UPC EAN: 786685861302
Technical Datasheet
Product RangeRMQ-Titan M22 Series
Panel Cutout Diameter22.3mm
Contact ConfigurationSPST-NO, SPST-NC
Switch OperationMomentary
Pushbutton Actuator StyleRound
Actuator / Cap ColourWhite
IP RatingIP66
Switch MountingPanel Mount
Switch TerminalsScrew
Illumination ColorWhite
Panel Cutout (H x W)-
SVHCNo SVHC (17-Dec-2015)
Product Overview
The M22M-DL-W-K11-230W is a white-illuminated flush momentary Pushbutton Switch with metal blaze and white light units.
- 1NO-1NC Contact blocks
Applications
Industrial
Technical Specifications
Product Range
RMQ-Titan M22 Series
Contact Configuration
SPST-NO, SPST-NC
Pushbutton Actuator Style
Round
IP Rating
IP66
Switch Terminals
Screw
Panel Cutout (H x W)
-
Panel Cutout Diameter
22.3mm
Switch Operation
Momentary
Actuator / Cap Colour
White
Switch Mounting
Panel Mount
Illumination Color
White
SVHC
No SVHC (17-Dec-2015)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:No SVHC (17-Dec-2015)
