BK/HTC-45M
Fuseholder, PCB Mount, 250V, 10A, 5 x 20mm, Solder, Through Hole, Screwdriver Cap, Vertical

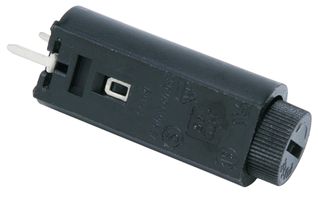

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON ELECTRONICS
Manufacturer Part NoBK/HTC-45M
Newark Part No.09J4511
Product RangeHTC Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $15.000 |
| 5+ | $14.150 |
| 10+ | $13.060 |
| 25+ | $11.500 |
| 50+ | $10.460 |
| 100+ | $9.870 |
| 250+ | $9.680 |
Price for:Each
Minimum: 1
Multiple: 1
$15.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEATON ELECTRONICS
Manufacturer Part NoBK/HTC-45M
Newark Part No.09J4511
Product RangeHTC Series
Technical Datasheet
Fuse Holder TypeCartridge Fuse Holder
Fuse Current6.3A
Fuse Size Held5mm x 20mm
Holder TerminalsPin
No. of Fuses1Fuses
Product RangeHTC Series
Voltage Rating VAC250V
Voltage Rating VDC-
SVHCTo Be Advised
Product Overview
The BK/HTC-45M is a 10A/250VAC 2.5W cartridge PCB Fuse Holder with high temperature thermoplastic, bayonet cap/carrier, tin-plated brass pin terminals and vertical mount. This HTC-series fuse holder for 5 x 20mm fuses.
- 960°C per IEC 695-2-1 Glow wire test
- -30 to 85°C Operating temperature range
- UL94V-0 Flammability rating
Applications
Safety
Technical Specifications
Fuse Holder Type
Cartridge Fuse Holder
Fuse Size Held
5mm x 20mm
No. of Fuses
1Fuses
Voltage Rating VAC
250V
SVHC
To Be Advised
Fuse Current
6.3A
Holder Terminals
Pin
Product Range
HTC Series
Voltage Rating VDC
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
