P363/EA/SVB
Switch Disconnector, 3 Pole, 690 V, 63 A, Screw, Rear Mount

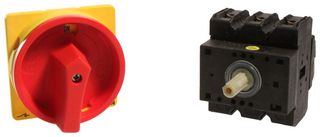

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON MOELLER
Manufacturer Part NoP363/EA/SVB
Newark Part No.48F3376
Product RangeP3 Series
Technical Datasheet
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $744.200 |
| 5+ | $725.600 |
| 10+ | $706.990 |
| 25+ | $669.780 |
Price for:Each
Minimum: 1
Multiple: 1
$744.20
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEATON MOELLER
Manufacturer Part NoP363/EA/SVB
Newark Part No.48F3376
Product RangeP3 Series
Technical Datasheet
Contact Voltage AC Max690V
Contact Current AC Max63A
No. of Poles3 Pole
IP / NEMA Rating-
Switch Disconnector Terminal StyleScrew
Switch Disconnector Mountng TypeRear Mount
Approvals / StandardsIEC/EN 60204−1, VDE
Product RangeP3 Series
SVHCNo SVHC (17-Dec-2015)
Product Overview
The P3-63/EA/SVB from Eaton Moeller is a flush mounting 3 pole main switch for emergency-stop function.
- Rated voltage is 690VAC and continuous output current of 63A
- Red rotary handle and yellow locking ring
- Lockable in the 0 (off) position
- CSA, EN, IEC, UL certified
- Degree of protection rated to IP65 on front side
Applications
Automation & Process Control, Power Management, Industrial
Technical Specifications
Contact Voltage AC Max
690V
No. of Poles
3 Pole
Switch Disconnector Terminal Style
Screw
Approvals / Standards
IEC/EN 60204−1, VDE
SVHC
No SVHC (17-Dec-2015)
Contact Current AC Max
63A
IP / NEMA Rating
-
Switch Disconnector Mountng Type
Rear Mount
Product Range
P3 Series
