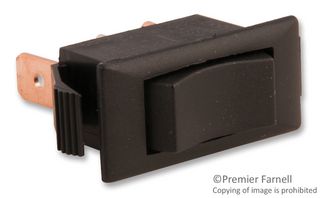

Rocker Switch, On-Off-On, SPDT, Non Illuminated, Panel Mount, Black, 1500 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON
Manufacturer Part No1504-11E
Newark Part No.87F2627
Product Range1500 Series
