113-40060
DIN 41612 Connector, Type H15 Series, 15 Contacts, Plug, 5.08 mm, 2 Row, z + d

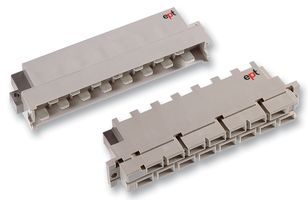

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPT
Manufacturer Part No113-40060
Newark Part No.33P9075
Product RangeType H15 Series
Technical Datasheet
190 In Stock
Need more?
114 Delivery in 1-3 Business Days(US stock)
76 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $10.180 |
| 50+ | $9.220 |
| 100+ | $8.480 |
| 250+ | $7.860 |
| 500+ | $7.370 |
Price for:Each
Minimum: 1
Multiple: 1
$10.18
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPT
Manufacturer Part No113-40060
Newark Part No.33P9075
Product RangeType H15 Series
Technical Datasheet
Product RangeType H15 Series
No. of Contacts15Contacts
Pitch Spacing5.08mm
No. of Rows2 Row
Rows Loadedz + d
Contact Plating-
Contact Material-
No. of Mating Cycles400
SVHCNo SVHC (19-Jan-2021)
Product Overview
The 113-40060 is a 15-way right angle solder Male Connector with quality class-II and silver-plated premating contacts, 5.08mm pitch. This type H series connector is designed according to DIN 41612/IEC 60603-2. It features reliable and proven connector system.
Applications
Industrial
Technical Specifications
Product Range
Type H15 Series
Gender
Plug
No. of Rows
2 Row
Contact Plating
-
No. of Mating Cycles
400
No. of Contacts
15Contacts
Pitch Spacing
5.08mm
Rows Loaded
z + d
Contact Material
-
SVHC
No SVHC (19-Jan-2021)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (19-Jan-2021)
