CSP-30ES-013

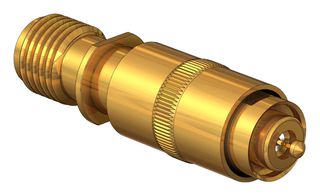

CSP-30ES-013 is a high performance radio frequency probe. The CSP-30ES-013 provides spring loaded compliance for both the centre signal probe and outer housing that provides ground contact. The CSP-30ES-013 features an easy to replace centre conductor probe. The knurl housing feature provides for easy and reliable press fit mounting. The CSP-30ES-013 coaxial probe provides instrumentation-quality interface for broadband RF measurements in excess of 20GHz. With the CSP- 30ES-013 RF circuit design, impedance characterization measurements can be performed in both high volume testing or engineering lab environments. Accurate and repeatable small signal and RF power (50 Watts) measurements provide consistent and repeatable results.

• Probe mates to standard SMA connectors
• Easy to replace inner probe: SPL-30E-030
• Articulated contact allows for targeting errors
• Ideal for high volume production or engineering lab test
• Incorporates spring probes in an open architecture format
• Consistent 50 ohm impedance
• Rugged design for inline applications
