CSP-30TS-011

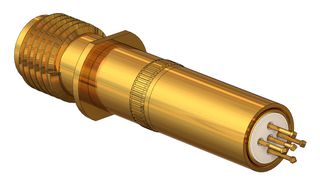

CSP-30TS-011 is a high performance radio frequency probe. The CSP-30TS-011 provides spring loaded compliance for both the centre signal probe and up to four outer ground probes. The CSP-30TS-011 features easy to replace signal and ground probes. The knurl housing feature provides for easy and reliable press fit mounting. The CSP-30TS-011 coaxial probe provides instrumentation-quality interface for broadband RF measurements in excess of 20GHz. With the CSP-30TS-011 RF circuit design, impedance characterization measurements can be performed in both high volume testing or engineering lab environments. Accurate and repeatable small signal and RF power (50 Watts) measurements provide consistent and repeatable results.

• Probe contacts PCBA test pads and vias
• Easy to replace signal and ground probes: SPT-30T-020 & SPT-30T-021
• CSP-30TS-011 is compatible with ECT ICT/FT probes
• Ideal for high volume production or engineering lab test
• Incorporates spring probes in an open architecture format
• Consistent 50 Ohm impedance
• Rugged design for inline applications
