CSP-40A-024
Contact, Spring Loaded Pin, 6.35 mm, Point, 31.28 mm, 1.75 oz

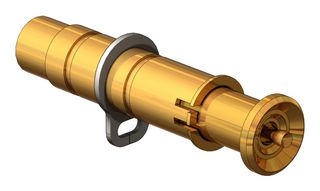

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoCSP-40A-024
Newark Part No.62AJ7894
Product RangeCSP Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoCSP-40A-024
Newark Part No.62AJ7894
Product RangeCSP Series
Technical Datasheet
Connector TypeSpring Loaded Pin
Centerline Spacing6.35mm
Connector Tip StylePoint
Current Rating-
Overall Length31.28mm
Spring Force Initial1.75oz
Spring Force Working Travel-
Product RangeCSP Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
CSP-40A-024 radio frequency probe is designed to mate to a variety of industry standard connectors such as MMCX, Fakra, SMB and U.FL. The CSP-40 coaxial probes provide an instrumentation quality interface for broadband RF measurements in excess of 6 GHz, and provide a cost-effective solution for high volume board testing. With the addition of the CSP-40A-024 high performance radio frequency probes, ECT expands its industry-proven high speed test interface portfolio.
- Combines proven RF performance with ease of use to ensure accurate and reliable testing
Technical Specifications
Connector Type
Spring Loaded Pin
Connector Tip Style
Point
Overall Length
31.28mm
Spring Force Working Travel
-
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
6.35mm
Current Rating
-
Spring Force Initial
1.75oz
Product Range
CSP Series
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
