F-S-C
Contact, Connector, Test, PCB, Spring Loaded Probe, 3.18 mm, Point, 5 A, 19.81 mm, 2 oz

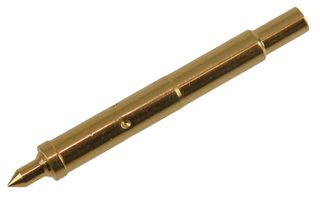

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoF-S-C
Newark Part No.94F3339
Product RangeF-S Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoF-S-C
Newark Part No.94F3339
Product RangeF-S Series
Technical Datasheet
Connector TypeSpring Loaded Probe
Centerline Spacing3.18mm
Connector Tip StylePoint
Current Rating5A
Overall Length19.81mm
Spring Force Initial2oz
Spring Force Working Travel6oz
Product RangeF-S Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The F-S-C is an epoxy mount Non-replaceable Probe with gold-plated brass barrel and gold-plated hardened beryllium copper plunger.
- -55 to 150°C Operating temperature range
- <lt/>30mΩ Average DC resistance
Applications
Test & Measurement, Industrial
Technical Specifications
Connector Type
Spring Loaded Probe
Connector Tip Style
Point
Overall Length
19.81mm
Spring Force Working Travel
6oz
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
3.18mm
Current Rating
5A
Spring Force Initial
2oz
Product Range
F-S Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
