P2662AG-2V1S
Contact, Connector, Test, PCB, Spring Loaded Probe, 1.27 mm, Cup, 3 A, 18.03 mm, 1 oz

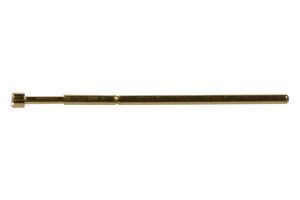

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2662AG-2V1S
Newark Part No.50F5570
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2662AG-2V1S
Newark Part No.50F5570
Technical Datasheet
Connector TypeSpring Loaded Probe
Centerline Spacing1.27mm
Connector Tip StyleCup
Current Rating3A
Overall Length18.03mm
Spring Force Initial1oz
Spring Force Working Travel2.2oz
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The P2662AG-2V1S is a Test Spring Pylon Probe designed to be used with the S2662A series receptacles. It has gold-plated phosphorous bronze body, silver-plated beryllium copper spring, stainless steel ball and beryllium copper plunger.
- <30mΩ Electrical resistance
Applications
Test & Measurement, Industrial
Technical Specifications
Connector Type
Spring Loaded Probe
Connector Tip Style
Cup
Overall Length
18.03mm
Spring Force Working Travel
2.2oz
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
1.27mm
Current Rating
3A
Spring Force Initial
1oz
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
