P2663G-1C1S
Contact, Connector, Test, PCB, Spring Loaded Probe, 1.91 mm, Point, 3 A, 20.57 mm, 1.5 oz

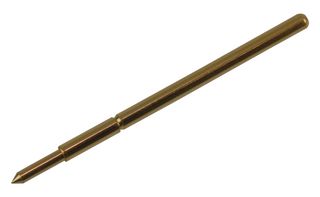

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2663G-1C1S
Newark Part No.84F964
Product RangeP2663 Series
Technical Datasheet
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $111.300 |
| 10+ | $99.790 |
| 25+ | $91.770 |
| 50+ | $84.100 |
| 100+ | $78.510 |
| 250+ | $73.270 |
Price for:Pack of 10
Minimum: 1
Multiple: 1
$111.30
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2663G-1C1S
Newark Part No.84F964
Product RangeP2663 Series
Technical Datasheet
Connector TypeSpring Loaded Probe
Centerline Spacing1.91mm
Connector Tip StylePoint
Current Rating3A
Overall Length20.57mm
Spring Force Initial1.5oz
Spring Force Working Travel3.3oz
Product RangeP2663 Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The P2663G-1C1S is a 20.57mm Pogo® Test Spring Probe with contacts. The probe with hardened BeCu plunger, gold-plated phosphorous bronze body, silver-plated BeCu spring and stainless steel ball. The Pylon Pogo® Contact advantage comes in two unique design features that enable our Pogo contacts to achieve the lowest, most consistent contact resistance available in the marketplace. The biasing ball construction of the Pogo plunger.
- Point connector tip style
- 3A Current rating
- 0.067" working travel
- 4.2oz Spring force working travel
Applications
Industrial, Test & Measurement
Technical Specifications
Connector Type
Spring Loaded Probe
Connector Tip Style
Point
Overall Length
20.57mm
Spring Force Working Travel
3.3oz
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
1.91mm
Current Rating
3A
Spring Force Initial
1.5oz
Product Range
P2663 Series
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
