P2663G-1P1S
Contact, Connector, Test, PCB, Spring Loaded Probe, 1.91 mm, 90° Convex, 3 A, 20.57 mm, 1.5 oz

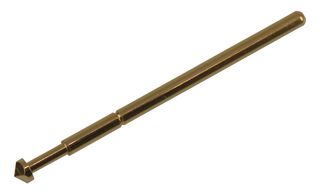

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2663G-1P1S
Newark Part No.50F5578
Product RangeP2663 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
| Quantity | Price |
|---|---|
| 1+ | $41.690 |
| 10+ | $37.380 |
| 25+ | $34.380 |
| 50+ | $31.500 |
| 100+ | $29.400 |
| 250+ | $27.440 |
Price for:Pack of 10
Minimum: 3
Multiple: 1
$125.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2663G-1P1S
Newark Part No.50F5578
Product RangeP2663 Series
Technical Datasheet
Connector TypeSpring Loaded Probe
Centerline Spacing1.91mm
Connector Tip Style90° Convex
Current Rating3A
Overall Length20.57mm
Spring Force Initial1.5oz
Spring Force Working Travel3.3oz
Product RangeP2663 Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The P2663G-1P1S is a Test Spring Probe designed to be used with the S2663 series receptacles. It has gold-plated phosphorous bronze body, gold-plated hardened beryllium copper plunger, stainless steel ball and spring.
- Chisel tip
- Straight body configuration
- <lt/>10mΩ Electrical resistance
Applications
Test & Measurement, Industrial
Technical Specifications
Connector Type
Spring Loaded Probe
Connector Tip Style
90° Convex
Overall Length
20.57mm
Spring Force Working Travel
3.3oz
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
1.91mm
Current Rating
3A
Spring Force Initial
1.5oz
Product Range
P2663 Series
