P2665G-1W1B
Contact, Connector, Test, PCB, Spring Loaded Probe, 3.18 mm, Waffle, 7 A, 32.77 mm, 1.5 oz
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2665G-1W1B
Newark Part No.99F3939
Technical Datasheet
4 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP2665G-1W1B
Newark Part No.99F3939
Technical Datasheet
Connector TypeSpring Loaded Probe
Centerline Spacing3.18mm

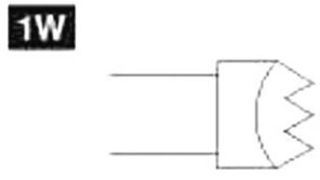

Connector Tip StyleWaffle
Current Rating7A
Overall Length32.77mm
Spring Force Initial1.5oz
Spring Force Working Travel3.8oz
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The P2665G-1W1B is a Test Spring Probe designed to be used with the PR541 series receptacles and can use ARIT54 tool for installation. It has gold-plated phosphorous bronze body, hardened beryllium copper plunger, stainless steel ball and spring.
- <10mΩ Electrical resistance
Applications
Test & Measurement, Industrial
Technical Specifications
Connector Type
Spring Loaded Probe
Connector Tip Style
Waffle
Overall Length
32.77mm
Spring Force Working Travel
3.8oz
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
3.18mm
Current Rating
7A
Spring Force Initial
1.5oz
Product Range
-
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
