P5160G-3C1S
Contact, Connector, Test, PCB, Spring Loaded Probe, 2.54 mm, Point, 8 A, 33.27 mm, 2.5 oz

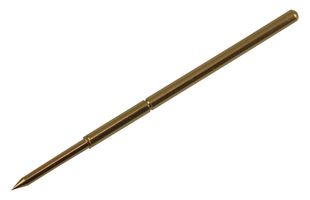

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP5160G-3C1S
Newark Part No.84F965
Technical Datasheet
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $79.820 |
| 10+ | $71.560 |
| 25+ | $65.810 |
| 50+ | $60.300 |
| 100+ | $56.300 |
| 250+ | $52.550 |
Price for:Pack of 10
Minimum: 1
Multiple: 1
$79.82
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoP5160G-3C1S
Newark Part No.84F965
Technical Datasheet
Connector TypeSpring Loaded Probe
Centerline Spacing2.54mm
Connector Tip StylePoint
Current Rating8A
Overall Length33.27mm
Spring Force Initial2.5oz
Spring Force Working Travel6.5oz
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
The P5160G-3C1S is a Test Spring Probe designed to be used with the PR54 series receptacles and can use ARIT54 tool for installation. It has gold-plated phosphorous bronze body, hardened beryllium copper plunger, stainless steel ball and music wire spring.
- <lt/>10mΩ Electrical resistance
Applications
Test & Measurement, Industrial
Technical Specifications
Connector Type
Spring Loaded Probe
Connector Tip Style
Point
Overall Length
33.27mm
Spring Force Working Travel
6.5oz
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
2.54mm
Current Rating
8A
Spring Force Initial
2.5oz
Product Range
-
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
