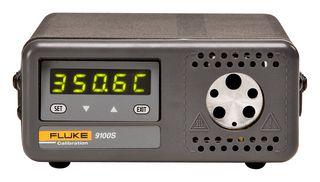

9100S-D-156

The 9100S-D-156 from Fluke Calibration is a handheld dry block calibrator with block D. It is a smallest, lightest and most portable dry-well. It’s simple and convenient to use and has a range to 375°C (707°F) and is perfect for checking RTDs, thermocouples and small bimetal thermometers in the field. With a proprietary Fluke Calibration temperature controller, the 9100S has a display resolution of 0.1 degrees, an accuracy of ±0.5°C, a stability of ±0.1°C and a stabilization time of just five minutes.

• Temperature ranges from 35°C to 375°C
• Accuracy to ±0.25°C at 50°C, ±0.25°C at 100°C, ±0.5°C at 375°C, stability of ±0.3°C at 375°C
• RS232 interface
• ±0.2°C with sensors of similar size at equal depths within wells
• Heating time of 9.5 minutes(35°C to 375°C), stabilization of 5mins & cooling time of 14mins
• Source power of 115VAC (±10%), 55Hz to 65Hz, 1.5A or 230VAC (±10%), 0.8A, 45Hz to 55Hz, 175W
• Dimension is 57mm x 125mm x 150mm and weight is 1Kg
• Block "D" has three pairs of metric sized wells (3mm, 4mm, 6mm)

Applications

Test & Measurement

Contents

HDRC handheld dry-well D, Rugged carrying case.
