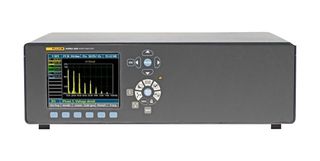

FLUKE-N5K 3PP64IPR

FLUKE-N5K 3PP64IPR is a Fluke-Norma 5000, three-phase power analyzer with 3 x PP64 power phase input modules with IEEE488 / LAN, process interface and printer. It provides highly accurate and reliable measurements for both the testing and the development of power electronics. The high precision power analyzer is a compact enough to easily carry and save working space. Includes three PP64 power phase input modules and an IEEE488/ Ethernet (IFC1) interface, analog/digital input output channels (PI1), and printer. It is an ideal test and analysis tool for the development of frequency converters and lighting equipment. It features 3 power phases, 5.7” / 144mm color display, harmonic analysis, FFT analysis, scope mode, vector diagram display, recorder function, Fluke NormaView PC software, and 4 MB RAM data memory.

• Bandwidth from DC to 3MHz for reliable measurement precision
• Simple user interface ensures easy, intuitive operation
• Standard configurations allow users to specify exact functionality required for own application
• All inputs are galvanically isolated to avoid short circuits in all applications
• RS232/USB interface for data download
• Voltage, current and power harmonics up to the 40th
• FFT analysis, vector diagram display, recorder function and Digital Oscilloscope (DSO) mode included
• User-selectable average time (from 15ms up to 3600s) for dynamic measurements
• 4 MB on-board memory for storage of measured values
• Includes Fluke NormaView PC software for setup, data download, analysis & report writing

Contents

Norma 5000 three phase power analyzer, 3 x PP64 power phase input module, Printer, Power supply cable, Fluke NormaView PC software, Color user's manual, Test certificate, Calibration values.
