FST10080
Diode Module, 80 V, 100 A, 840 mV, 1 Pair Common Cathode, TO-249AB, 3 Pins

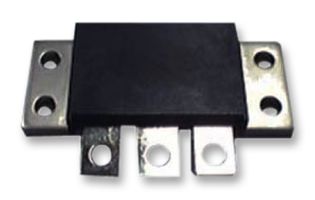

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
Product Information
ManufacturerGENESIC
Manufacturer Part NoFST10080
Newark Part No.06W2364
Technical Datasheet
Repetitive Peak Reverse Voltage80V
Average Forward Current100A
Forward Voltage Max840mV
Diode Module Configuration1 Pair Common Cathode
Diode Case StyleTO-249AB
No. of Pins3Pins
Operating Temperature Max150°C
Forward Surge Current1kA
Diode MountingPanel
Product Range-
SVHCNo SVHC (17-Dec-2015)
Technical Specifications
Repetitive Peak Reverse Voltage
80V
Forward Voltage Max
840mV
Diode Case Style
TO-249AB
Operating Temperature Max
150°C
Diode Mounting
Panel
SVHC
No SVHC (17-Dec-2015)
Average Forward Current
100A
Diode Module Configuration
1 Pair Common Cathode
No. of Pins
3Pins
Forward Surge Current
1kA
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2015)
