233-206-G6MT15-35PN
Circular Connector, MIL-DTL-38999 Series III, SuperNine Series, Cable Mount Plug, 37 Contacts

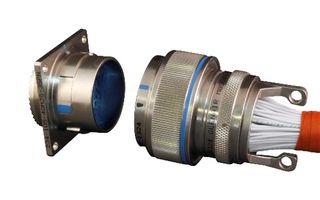

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGLENAIR
Manufacturer Part No233-206-G6MT15-35PN
Newark Part No.29AJ3680
Product RangeSuperNine Series
Technical Datasheet
2 In Stock
Ship in 2-3 days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3,318.910 |
| 2+ | $2,980.780 |
| 4+ | $2,553.680 |
| 7+ | $1,957.530 |
| 10+ | $1,512.640 |
| 20+ | $1,183.420 |
| 35+ | $1,005.470 |
| 50+ | $889.800 |
Price for:Each
Minimum: 1
Multiple: 1
$3,318.91
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGLENAIR
Manufacturer Part No233-206-G6MT15-35PN
Newark Part No.29AJ3680
Product RangeSuperNine Series
Technical Datasheet
Military SpecificationMIL-DTL-38999 Series III
Product RangeSuperNine Series
Circular Connector Shell StyleCable Mount Plug
No. of Contacts37Contacts
Circular Contact TypeCrimp Pin
Coupling Style-
Insert Arrangement15-35
Connector Body MaterialAluminum Alloy Body
Connector Body PlatingNickel-PTFE
Contact MaterialCopper Alloy
Contact PlatingGold
Insert RotationN
Service ClassEnvironmentally Sealed
SVHCTo Be Advised
Product Overview
Glenair’s SuperNine® provides the most complete and advanced family of connectors for customers who choose D38999 Series III & Series IV for their interconnect systems. While Glenair does offer MIL-DTL-38999 Series III & Series IV qualified connectors, the SuperNine’s true strength is almost endless customization with performance exceeding the military specification in many critical areas. SuperNine® allows customers to address electrical, environmental, and mechanical issues that normal 38999 mil-spec connectors simply cannot.
- SuperNine® environmental connectors
- 233-206 connector with integrated banding porch, crimp
- MIL-DTL-38999 Series III type
- PC-tail contacts with multiple board/box mounting options
- 1500 mating cycle options
- Filtering (lightning/noise/EMP) options
- Sealing up to IP69K with appropriate options
- High speed options (RF, microwave and datalink contacts)
Technical Specifications
Military Specification
MIL-DTL-38999 Series III
Circular Connector Shell Style
Cable Mount Plug
Circular Contact Type
Crimp Pin
Insert Arrangement
15-35
Connector Body Plating
Nickel-PTFE
Contact Plating
Gold
Service Class
Environmentally Sealed
Product Range
SuperNine Series
No. of Contacts
37Contacts
Coupling Style
-
Connector Body Material
Aluminum Alloy Body
Contact Material
Copper Alloy
Insert Rotation
N
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
