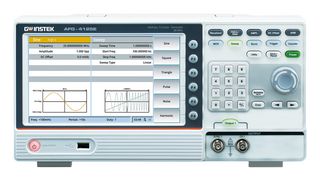

AFG-4125E

AFG-4125E is an AFG-4000 series 25MHz, 1-channel arbitrary function generator. It features 1Hz high-resolution in the whole frequency bandwidth. The series has built-in standard signals including sine wave, square wave, triangle wave, pulse wave, noise wave, harmonic wave, etc. The AFG-4000 series provides the modulation signal outputs of AM, DSB-AM, FM, PM, PWM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, OSK, SUM, signal sweep outputs, and the burst and counter functions. The AFG-4000 series has the built-in 50 ohm/high impedance switching function, and is equipped with an 8-inch high-resolution TFT LCD display. Typical applications include educational institutions, automotive electronics and electronic products and parts.

• Minimum resolution is 1Hz
• 125MSa/s sample rate
• 14bits amplitude resolution
• 16k/per channel memory length
• Built-in ARB function
• Power supply range from 100V to 240V
• USB(host, device) interface
• Dimension is 13.38inch x 6.96inch x 3.54inch (W x H x D)

Contents

Arbitrary function generator, Test lead, BNC to alligator clips cable x 1, USB cable x 1, Power cord x 1.
