GBM-3080
Battery Tester, Lead Acid, Li-Ion, 0V to 80V, 107 mm, 264 mm, 309 mm, GBM-3000 Series

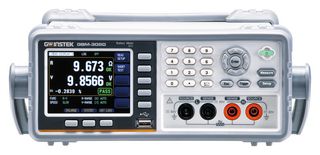

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGW INSTEK
Manufacturer Part NoGBM-3080
Newark Part No.33AH6974
Product RangeGBM-3000 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 1+ | $3,428.680 |
Price for:Each
Minimum: 1
Multiple: 1
$3,428.68
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGW INSTEK
Manufacturer Part NoGBM-3080
Newark Part No.33AH6974
Product RangeGBM-3000 Series
Technical Datasheet
Battery Technologies SupportedLead Acid, Li-Ion
Voltage Measuring Range DC0V to 80V
External Height107mm
External Width264mm
External Depth309mm
Product RangeGBM-3000 Series
SVHCNo SVHC (17-Jan-2022)
Product Overview
GBM-3000 series 80V desktop battery meter with 3.5" (320 x240) TFT LCD display.
- 80V battery meter
- 3.5" TFT LCD (320x240)
- Measures DC voltage and AC resistance
- Measures 0mohm to 3.2Kohm resistance
- 0.01% voltage accuracy and 0.5% resistance accuracy
- Measurement resolution up to 0.1μohm and 10μV suitable for single-cell measurement
- Independent GO/NOGO determination function for voltage and resistance respectively
- USB host/device, RS-232C and handler interfaces
Contents
Battery meter, Safety sheet x 1, Power cord x 1, GBM-01 x 1 : 4 Wire(kelvin clip) test lead, 90V(max), CD x 1(including complete user manual and USB driver).
Technical Specifications
Battery Technologies Supported
Lead Acid, Li-Ion
External Height
107mm
External Depth
309mm
SVHC
No SVHC (17-Jan-2022)
Voltage Measuring Range DC
0V to 80V
External Width
264mm
Product Range
GBM-3000 Series
