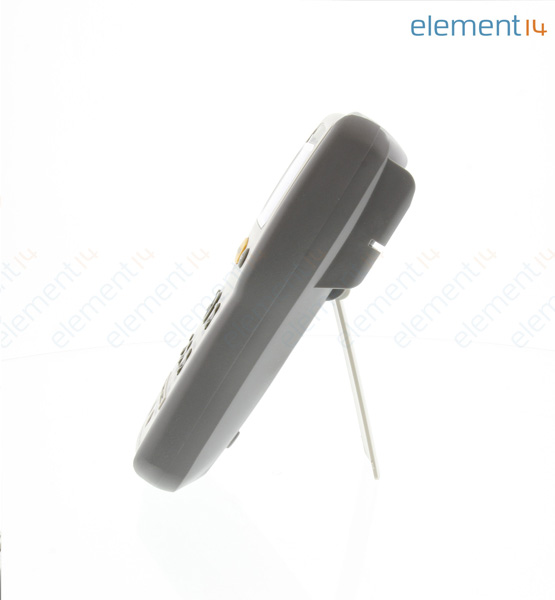

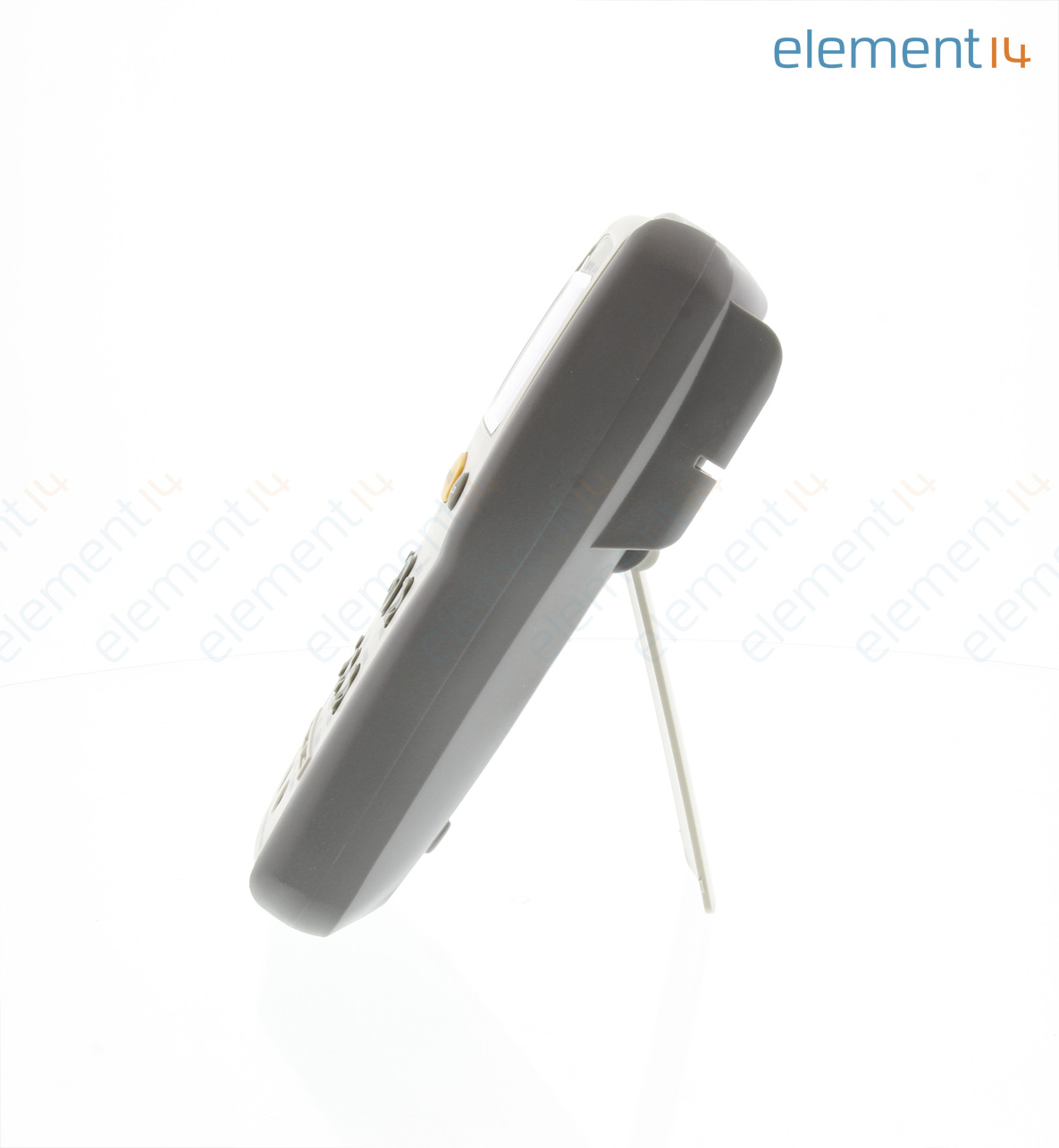

GW INSTEK LCR-916
LCR Meter, Hand Held, 100 kHz, 200 mH, 20 µF, 2 Mohm, LCR-900 Series
- Manufacturer:
- GW INSTEK GW INSTEK
- Manufacturer Part No:
- LCR-916
- Newark Part No.:
- 27W7487
- Product Range
- LCR-900 Series
- Technical Datasheet:
- LCR-916 Datasheet
- ECAD / MCAD
-
Product Range Selector (LCR-900 Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Hand Held
- :
- 100kHz
- :
- 200mH
- :
- 20µF
- :
- 2Mohm
- :
- LCR-900 Series
Technical Documents (5)
Product Overview
The LCR-916 is a 100kHz Handheld LCR Meter provides 2-measurement methods, 2-wire and 5-wire measurement. It is a smart convenient and fully functional dual display handheld LCR meter. The test frequency extends as high 100kHz, providing greater flexibility to test a wider range of components. It uses a dual 20000/2000 count display. The 20000 count display is used for displaying primary parameters such as capacitance, reactance and resistance and a 2000 count display is for secondary parameters such as Q, D, ESR and RP measurements. Secondary measurements can be combined with the primary measurements while the primary measurement is still being taken.
- Auto LCR mode for DUT measuring
- 0.2% Basic accuracy
- Parallel or series testing mode
- Sorting mode for quality control
- Data hold or zero mode supported
- Auto range, auto backlit
- Low battery indication
- Auto power off
- Data collection or DC power operation
Applications
Test & Measurement
