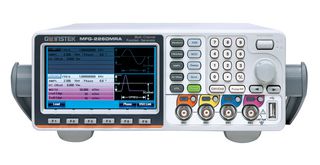

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGW INSTEK
Manufacturer Part NoMFG-2260MRA
Newark Part No.38AC2042
Product RangeMFG-2000 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
Quantity | Price |
---|---|
1+ | $1,595.570 |
Price for:Each
Minimum: 1
Multiple: 1
$1,595.57
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGW INSTEK
Manufacturer Part NoMFG-2260MRA
Newark Part No.38AC2042
Product RangeMFG-2000 Series
Technical Datasheet
Signal Generator TypeArbitrary, Function, Pulse, RF
No. of Channels2 Channel
Product RangeMFG-2000 Series
Bandwidth60MHz
Signal Generator ModulationAM, ASK, FM, FSK, PM, PSK, PWM, SUM
Manufacturer Warranty1 Year
Plug Type-
SVHCNo SVHC (17-Jan-2022)
Product Overview
- 60MHz dual channel AFG with pulse generator, modulation, 320MHz RF signal generator, power amplifier
- True point by point output arbitrary waveform function
- 4.3" TFT colour display
- AM/FM/PM/ASK/FSK/PSK/SUM/PWM modulation
- Earth ground isolation design among I/O terminals and instrument chassis
- USB host/USB device/LAN interface
Contents
Arbitrary function generator, BNC-alligator test lead x 2 , Quick start guide x 1, CD-ROM with MFG software, User manual x 1.
Technical Specifications
Signal Generator Type
Arbitrary, Function, Pulse, RF
Product Range
MFG-2000 Series
Signal Generator Modulation
AM, ASK, FM, FSK, PM, PSK, PWM, SUM
Plug Type
-
No. of Channels
2 Channel
Bandwidth
60MHz
Manufacturer Warranty
1 Year
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
