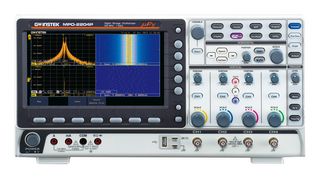

MPO-2204P

MPO-2204P is a MPO-2000 series professional multi-function programmable oscilloscope. In addition to being an oscilloscope, it also includes a spectrum analyzer, an arbitrary waveform generator, a digital multimeter and a DC power supply. In addition to the five-in-one multi-functional architecture, we innovatively introduced the Python script function into the MPO-2000, so that users can conduct program control of a small automated test system by setting up a single unit test or multi-unit test without a PC, hence, the name MPO.

• 200MHz 4 channel digital storage oscilloscope
• Equips with spectrum analyzer, dual channel 25MHz AWG, 5000 counts DMM and power supply
• Allow to use python scripts to control for automation purpose
• Dual channel spectrum analyzer with spectrogram
• I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
• CAN-FD, USB 2.0 (full speed), FlexRay, USB-PD, I2S digital decoding
• Power supply: dual channel output, 1V to 20V continuously adjustable (0.1V step)
• Supports USB HID protocol, which can be used to connect keyboard, mouse and barcode scanner
• Supports USB host CDC-ACM protocol, which controls other GW instek instruments
• Dimension is 15.118inch x 8.188inch x 5.011inch

Contents

Multi-function programmable oscilloscope, Power cord, Certificate of calibration, Passive probe (one probe per channel), GTL-110 BNC-BNC cable x 2, GTL-105A alligator clip test lead, GTL-207 banana plug test lead, GTP-200B-4: 4P200MHz(10:1/1:1) switchable passive probe.
