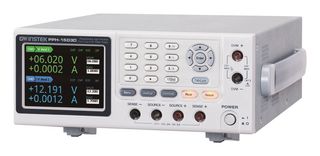

PPH-1503D

The PPH-1503D from GW Instek is a 45W programmable high precision dual-channel DC power supply. The dual operational ranges are 0 to 15V/0 to 3A or 0 to 9V/0 to 5A. CH2 provides 0 to 12V/0 to 1.5A with 18W power output. Fast load current variation will result in voltage sag for general power supplies that will have an impact on DUT’s internal circuit operation. PPH-1503D is equipped with the excellent transient recovery time less than 40us, recover the output voltage to within 100mV of the previous voltage output when the current level changes from 10% to 100% of the full scale. It has five sets of system setting values for the SAVE/RECALL function, 10 sets of power on setup settings, key-lock function to prevent unauthorized inputs, temperature-controlled fan to reduce noise, hardcopy to save screen information and external relay control device together augment PPH-1503D’s usability.

• 3.5inch TFT LCD display
• Built-in DVM measurement function
• High measurement resolution (1mV/0.1μA for 5mA Range)
• Current sink function (maximum of 3.5A)
• Pulse current measurement, long integration current measurement
• Input power 90VAC to 264VAC at 50/60Hz, power consumption is 160W
• Sequence function (sequential power output), built-in battery simulation function
• OVP, OCP, OTP & temperature display for heat sink
• Support USB (device& host)/GPIB/LAN
• Dimension is 222mm (W) x 86mm (H) x 363mm (D) and weight is 4.5Kg

Applications

Test & Measurement

Contents

DC power supply, CD (User manual x1), Quick start manual x 1, Power cord (region dependent), Test lead GTL-117 x1, GTL-203A x1, GTL-204A x1.
