RMCV190713BK1
19" Case, Chassis, Black, 4U, Aluminum, Table Top, 177.8 mm, 432 mm, 330 mm
| Quantity | Price |
|---|---|
| 1+ | $274.680 |
| 5+ | $243.770 |
| 10+ | $241.380 |
| 25+ | $238.970 |
Product Information
Product Overview
The RMCV190713BK1 is a 4U Vented Economy Rack Chassis that uses all machine screw and PEM nut construction, perfect for applications where repetitive assembly and disassembly are required. Strong design construction using 0.125-inch thick side panels and rack-mount brackets, 0.064-inch thick front and rear panels, 0.062-inch thick top and bottom panels. It can be used with or without rack-mounting "ears" or brackets. The RMC series enclosure is finished in rugged, satin texture, black powder paint. Easy access to inside, only 4 screws need to be removed from any of the 6 panels for internal access. Knockdown design ships unassembled for easy handling and shipping protection.
- Lightweight design - All aluminum, type 5050 H32 for easy modification
Applications
Industrial
Contents

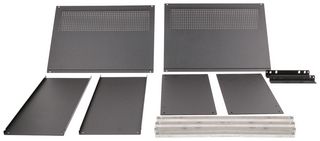

Top, bottom, side panels, front and rear panels, Rubber self adhesive feet, Rack-mount brackets and All hardware.
Notes
Grounding options available through our modification process. Panels are not grounded to frame due to powder coat finish.
Technical Specifications
4U
Table Top
432mm
7"
13"
No SVHC (21-Jan-2025)
Aluminum
177.8mm
330mm
17"
-
