P25-0822

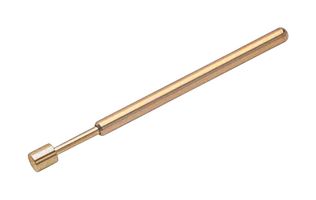

Contact, Spring Loaded Probe, 2.54 mm, Flat, 3 A, 24.7 mm
Image is for illustrative purposes only. Please refer to product description.
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $4.170 |
| 10+ | $3.670 |
| 50+ | $3.280 |
| 100+ | $2.960 |
| 250+ | $2.710 |
| 500+ | $2.510 |
| 1000+ | $2.310 |
| 2500+ | $2.160 |
Price for:Each
Minimum: 1
Multiple: 1
$4.17
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARWIN
Manufacturer Part NoP25-0822
Newark Part No.97K8143
Technical Datasheet
Connector TypeSpring Loaded Probe
Centerline Spacing-
Connector Tip Style-
Current Rating3A
Overall Length-
Overall Length-
Spring Force Initial-
Spring Force Working Travel-
Product Range-
SVHCLead (21-Jan-2025)
Product Overview
- 2-part ATE spring probe with Ø1.8mm flat head for 2.54mm pitch
- Vertical connector orientation
- PC tail/throughboard connection type
- Use with receptacle/sleeve S25-022, S25-212 or S25-512
- Gold plated beryllium copper plunger
- Gold plated brass barrel and stainless steel spring
- 100000 min cycle durability
- Replaced when damaged or worn out, without re-soldering to test jig
Applications
Test & Measurement
Technical Specifications
Connector Type
Spring Loaded Probe
Connector Tip Style
-
Overall Length
-
Spring Force Initial
-
Product Range
-
Centerline Spacing
-
Current Rating
3A
Overall Length
-
Spring Force Working Travel
-
SVHC
Lead (21-Jan-2025)
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
