FNDF1814-1T
Quick Disconnect Terminal, FNDF Series, Female Flag Disconnect, 6.35mm x 0.81mm, 0.25" x 0.032"

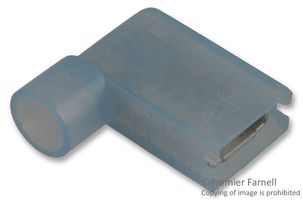

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHOFFMAN PRODUCTS
Manufacturer Part NoFNDF1814-1T
Newark Part No.44F476
Product RangeFNDF Series
Technical Datasheet
4 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $53.270 |
| 5+ | $44.280 |
| 10+ | $38.940 |
| 25+ | $34.020 |
| 100+ | $31.770 |
Price for:Pack of 100
Minimum: 1
Multiple: 1
$53.27
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHOFFMAN PRODUCTS
Manufacturer Part NoFNDF1814-1T
Newark Part No.44F476
Product RangeFNDF Series
Technical Datasheet
Product RangeFNDF Series
Terminal TypeFemale Flag Disconnect
Tab Size - Metric6.35mm x 0.81mm
Tab Size - Imperial0.25" x 0.032"
Wire Size AWG Min18AWG
Wire Size AWG Max14AWG
Insulator ColourBlue
Conductor Area CSA-
Insulator MaterialNylon 6.6 (Polyamide 6.6)
Terminal MaterialBrass
SVHCTo Be Advised
Product Overview
The FNDF1814-1T is a female Flag Disconnect made of brass with tin plated finish and blue 6/6 UL94V2 nylon insulator. This FNDF series quick disconnect terminal features crimp termination and accepts 18 to 14AWG wire.
- 24A Maximum electrical rating
- 105°C Temperature rating
Applications
Industrial
Technical Specifications
Product Range
FNDF Series
Tab Size - Metric
6.35mm x 0.81mm
Wire Size AWG Min
18AWG
Insulator Colour
Blue
Insulator Material
Nylon 6.6 (Polyamide 6.6)
SVHC
To Be Advised
Terminal Type
Female Flag Disconnect
Tab Size - Imperial
0.25" x 0.032"
Wire Size AWG Max
14AWG
Conductor Area CSA
-
Terminal Material
Brass
