060-6827-02

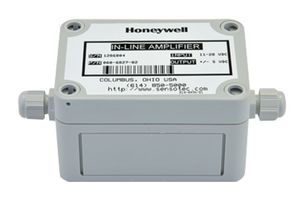

Inline Amplifier, Model UV, Bridge Based Sensor, 11 to 28 Vdc, +/ 5 Vdc Output
Image is for illustrative purposes only. Please refer to product description.
Unable to Retrieve Availability Information
Product Information
ManufacturerHONEYWELL
Manufacturer Part No060-6827-02
Newark Part No.29Y7000
Technical Datasheet
SVHCNo SVHC (07-Jul-2017)
Product Overview
The 060-6827-02 is a Model UV Universal Inline Amplifier with ±5VDC output and 11 to 28VDC input. This Model UV amplifier supplies a highly regulated bridge excitation voltage for the transducer and converts the millivolt signal of the transducer to a ±10VDC signal. The Universal In-line features two selectable excitation voltages, programmable gain settings, a wide adjustment range on the zero and a buffered solid-state shunt cal relay for quick calibration.
- Strain gage sensor amplifier
- NEMA-4 housing
- Increases signal-to-noise ratio in noisy environments
- Effects of voltage drops in excitation sources are eliminated
- Signals may be sent to the data systems from low impedance sources
Applications
Sensing & Instrumentation
Technical Specifications
SVHC
No SVHC (07-Jul-2017)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (07-Jul-2017)
