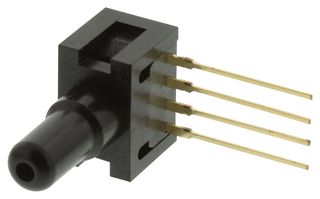

24PCEFA6G

The 24PCEFA6G is a gage unamplified non-compensated flow-through Miniature Pressure Sensor measures positive and negative gage pressures. The flow-through port design fits in-line with application. It offers differential and gauge measurement, straight port and voltage output. The sensor features a proven sensing technology that utilizes a specialized piezo-resistive micro-machined sensing element. The low power, non-amplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over 0.5psi through 250psi sensing ranges.

• Minimal dead space - Efficient cleansing and disinfecting
• Silicon sensor chip
• 24" Wire harness with splash proof connector
• -40 to 85°C Operating temperature range

Applications

Medical, Sensing & Instrumentation, Robotics, HVAC
