BZG1-2RN2
Limit Switch, Adjustable Roller Lever, SPDT-1NO, SPDT-NC, 15 A, 600 V, 20 ozf

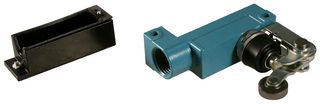

Image is for illustrative purposes only. Please refer to product description.
10 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $401.620 |
| 5+ | $394.940 |
| 10+ | $388.270 |
Price for:Each
Minimum: 1
Multiple: 1
$401.62
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHONEYWELL
Manufacturer Part NoBZG1-2RN2
Newark Part No.23F4310
Limit Switch ActuatorAdjustable Roller Lever
Contact ConfigurationSPDT-1NO, SPDT-NC
Contact Current AC Max15A
Contact Voltage AC Max600V
Operating Force Max20ozf
Product Range-
Contact Current DC Max500mA
Contact Voltage DC Max250V
SVHCNo SVHC (07-Jul-2017)
Product Overview
The BZG1-2RN2 is a single-pole double-throw (SPDT) enclosed Limit Switch with top roller arm actuator and adjustable with steel roller. The MICRO SWITCH™ BZG medium-duty switch comes with neoprene seal gasket between the housing halves, elastomer boot actuators, sealed conduit connectors and die-cast aluminum housing. Mounting holes are located outside the switch cavity and accept No. 10 screws.
- -32 to 71°C Operating temperature range
Applications
Industrial
Warnings
Do not use this product as safety or emergency stop device or in any other application where failure of the product could result in personal injury.
Technical Specifications
Limit Switch Actuator
Adjustable Roller Lever
Contact Current AC Max
15A
Operating Force Max
20ozf
Contact Current DC Max
500mA
SVHC
No SVHC (07-Jul-2017)
Contact Configuration
SPDT-1NO, SPDT-NC
Contact Voltage AC Max
600V
Product Range
-
Contact Voltage DC Max
250V
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Jul-2017)
