LPT00070PBYNKCAA01

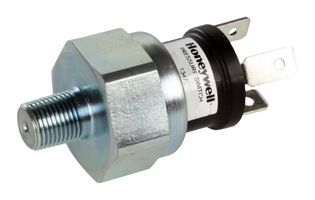

LPT00070PBYNKCAA01 is a LP series low pressure switch. This pressure switch is durable, reliable electromechanical gauge pressure on/off switch. Their high proof pressure and burst pressure ratings can allow for use in many rugged applications that require the making or breaking of an electrical connection in response to a pressure change of the system media. Potential application includes agricultural machinery, heavy duty construction machinery and trucks, lawn & garden machinery, marine vessels, material handling machinery, railway, CNC machines, compressors/boilers, fracking equipment, food & beverage equipment, generators, HVAC/R equipment, mud pumps, pneumatic equipment, presses/punches, pressure washers, trash compactors, water pumps & jet cutting machines.

• Rising, field adjustable set point, 7psi operating pressure
• Psig, sealed gauge pressure unit, 1/8-27 NPT port
• SPDT-NO/NC, gold-plated contacts output, cold-rolled steel with zinc plating base
• Polyimide film diaphragm (PTFE coated), nitrile O-ring actuation/application
• Deutsch DT04-3P-E005 (3-Pin connector) connector, standard switch
• Life cycle rating up to 2 million
• IP67 sealing rating
• Temperature rating range from -40°C to 120°C
