Product Information
ManufacturerHONEYWELL
Manufacturer Part NoV7-7B17D8-201
Newark Part No.39B3019
Product RangeV7 Series
Technical Datasheet
Microswitch TypeMiniature
Microswitch ActuatorRoller Lever
Contact ConfigurationSPDT
Switch TerminalsQuick Connect, Solder
Contact Current Max11A
Contact Voltage DC Nom250VDC
Product RangeV7 Series
Contact Voltage AC Nom277VAC
Operating Force Max2.78N
SVHCNo SVHC (07-Jul-2017)
Product Overview

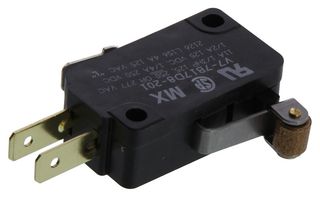

The V7-7B17D8-201 is a Miniature Basic Switch, SPDT circuitry, roller lever actuator; quick connect termination with silver contacts. The basic switches are used for simple or precision on/off, end of limit, presence/absence, pressure, temperature and manual operator interface application needs.
- Designed for 100K operations at a full load or 10M for mechanical life
Applications
Industrial, Medical, HVAC, Test & Measurement, Computers & Computer Peripherals
Technical Specifications
Microswitch Type
Miniature
Contact Configuration
SPDT
Contact Current Max
11A
Product Range
V7 Series
Operating Force Max
2.78N
Microswitch Actuator
Roller Lever
Switch Terminals
Quick Connect, Solder
Contact Voltage DC Nom
250VDC
Contact Voltage AC Nom
277VAC
SVHC
No SVHC (07-Jul-2017)
