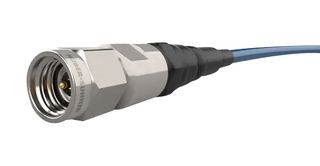

SF526E/11PC35/11PC35/24IN

SF526E/11PC35/11PC35/24IN is a SUCOFLEX® 500 series high-end microwave cable assembly that is designed to deliver consistent, repeatable measurements over time. With a proprietary cable and connector design, this assembly offers exceptional phase and amplitude stability, along with excellent return and insertion loss at frequencies up to 70GHz. HUBER+SUHNER’s patented innovative Rotary Swaging technology blends the strengths of both solid and stranded conductors into a single optimized design. This approach minimizes signal loss, ensures superior electrical stability during bending, and enhances cable flexibility, all while extending product's lifespan. It features a rotary-swaged, low-loss inner conductor and a rugged construction, enabling it to withstand over 100,000 flex cycles without any degradation in performance. This durability ensures a long, reliable service life, making it suitable for both test and measurement applications as well as high-speed digital environments.

• High performance up to 70GHz
• Very long service life >100’000 cycles
• Excellent insertion loss
• Phase and amplitude stability with flexure and movement
• Torque, crush, and kink resistance
• Abrasion, moisture and dust resistance
• Extremely precise and repeatable measurements
• Minimizes replacement needs and reduces investment costs
• Designed for easy handling and usability
• Short delivery time, excellent price-performance ratio
