30-076
Closed End Splice, 76B Series, Twist On, 14 AWG, 12 AWG, 16 mm², Red

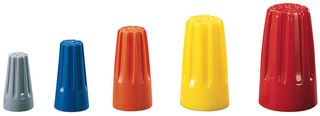

Image is for illustrative purposes only. Please refer to product description.
ManufacturerIDEAL
Manufacturer Part No30-076
Newark Part No.35F2456
Product Range76B Series
Technical Datasheet
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $37.530 |
Price for:Pack of 100
Minimum: 1
Multiple: 1
$37.53
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerIDEAL
Manufacturer Part No30-076
Newark Part No.35F2456
Product Range76B Series
Technical Datasheet
Product Range76B Series
TerminationTwist On
Wire Size AWG Min14AWG
Wire Size AWG Max12AWG
Conductor Area CSA16mm²
Insulator ColourRed
Insulator MaterialThermoplastic
SVHCNo SVHC (08-Jul-2021)
Alternatives for 30-076
1 Product Found
Product Overview
The 30-076 is a Wire-Nut® Wire Connector with red thermoplastic. This 76B series closed end splice supports twist on termination and accepts 14 to 12AWG wire. The fixed square-wire spring creates its own threads-maintains a secure positive grip that will not relax over time. No pre-twisting required-positive grip design provides fast, easy installation. Deep skirt helps protect against flash-over. Reusable for easy circuit changes and additions. It accepts 2 #14 to 4 #12 AWG wire combinations.
- Tough, UL94V-2 flame-retardant shell rated at 105°C
- Rated for 600V maximum
Applications
Industrial
Technical Specifications
Product Range
76B Series
Wire Size AWG Min
14AWG
Conductor Area CSA
16mm²
Insulator Material
Thermoplastic
Termination
Twist On
Wire Size AWG Max
12AWG
Insulator Colour
Red
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (08-Jul-2021)
