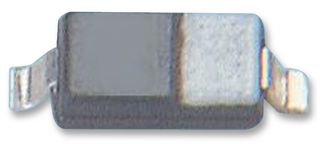

BAS5202VH6327XTSA1
Small Signal Schottky Diode, Single, 45 V, 500 mA, 600 mV, 2 A, 150 °C
21,559 In Stock
Need more?
3625 Delivery in 1-3 Business Days(US stock)
17934 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
Packaging Options
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $0.793 |
| 10+ | $0.381 |
| 25+ | $0.351 |
| 50+ | $0.317 |
| 100+ | $0.287 |
| 250+ | $0.271 |
| 500+ | $0.256 |
Full Reel
| Quantity | Price |
|---|---|
| 15000+ | $0.144 |
| 30000+ | $0.126 |
| 60000+ | $0.112 |
| 90000+ | $0.102 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoBAS5202VH6327XTSA1
Newark Part No.
Full Reel98AK5358
Re-Reel79Y4019
Cut Tape79Y4019
Product RangeBAS52
Technical Datasheet
Diode ConfigurationSingle
Repetitive Peak Reverse Voltage45V
Average Forward Current500mA
Forward Voltage Max600mV
Forward Surge Current2A
Operating Temperature Max150°C
Diode Case StyleSC-79
No. of Pins2Pins
Reverse Recovery Time-
Diode MountingSurface Mount
Product RangeBAS52
QualificationAEC-Q101
SVHCNo SVHC (25-Jun-2025)
Product Overview
- Medium current rectifier silicon Schottky diode
- Qualified according AEC Q101
- Low forward voltage at 200mA
- High reverse voltage
Technical Specifications
Diode Configuration
Single
Average Forward Current
500mA
Forward Surge Current
2A
Diode Case Style
SC-79
Reverse Recovery Time
-
Product Range
BAS52
SVHC
No SVHC (25-Jun-2025)
Repetitive Peak Reverse Voltage
45V
Forward Voltage Max
600mV
Operating Temperature Max
150°C
No. of Pins
2Pins
Diode Mounting
Surface Mount
Qualification
AEC-Q101
Technical Docs (1)
Alternatives for BAS5202VH6327XTSA1
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
