BGS12SN6E6327XTSA1
RF Switch IC, SPDT, 100 MHz to 6 GHz, TTL, CMOS, 1.8 V to 3.5 V, TSNP-6

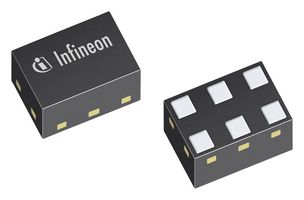

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoBGS12SN6E6327XTSA1
Newark Part No.23AC2858
Technical Datasheet
No Longer Available
Product Information
ManufacturerINFINEON
Manufacturer Part NoBGS12SN6E6327XTSA1
Newark Part No.23AC2858
Technical Datasheet
Frequency Min100MHz
Frequency Max6GHz
RF IC Case StyleTSNP
No. of Pins6Pins
Supply Voltage Min1.8V
Supply Voltage Max3.5V
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
Automotive Qualification Standard-
MSLMSL 1 - Unlimited
SVHCNo SVHC (08-Jul-2021)
Product Overview
Wideband RF SPDT switch in ultra-small package with 0.77mm2 footprint.
- 2 high-linearity TRx paths with power handling capability of up to 30dBm
- All ports fully bi-directional
- Low insertion loss
- Low harmonic generation
- High port-to-port-isolation
- 0.1 to 6GHz coverage
- High ESD robustness
- On-chip control logic and high ESD robustness
- No decoupling capacitors required if no DC applied on RF lines
- High switching speed, ideal for WLAN and Bluetooth applications
Technical Specifications
Frequency Min
100MHz
RF IC Case Style
TSNP
Supply Voltage Min
1.8V
Operating Temperature Min
-40°C
Product Range
-
MSL
MSL 1 - Unlimited
Frequency Max
6GHz
No. of Pins
6Pins
Supply Voltage Max
3.5V
Operating Temperature Max
85°C
Automotive Qualification Standard
-
SVHC
No SVHC (08-Jul-2021)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
