26,580 In Stock
Need more?
11373 Delivery in 1-3 Business Days(US stock)
15207 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $1.920 |
| 10+ | $1.920 |
| 25+ | $1.920 |
| 50+ | $1.920 |
| 100+ | $1.920 |
| 250+ | $1.920 |
| 500+ | $1.920 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$1.92
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoBSC093N15NS5ATMA1
Newark Part No.13AC8339
Product RangeOptiMOS 5
Technical Datasheet
Transistor PolarityN Channel
Channel TypeN Channel
Drain Source Voltage Vds150V
Continuous Drain Current Id87A
Drain Source On State Resistance0.0079ohm
On Resistance Rds(on)0.0079ohm

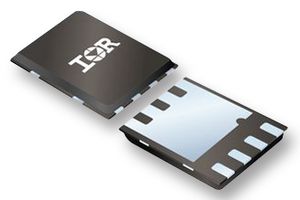

Transistor Case StyleTDSON
Transistor MountingSurface Mount
Rds(on) Test Voltage10V
Gate Source Threshold Voltage Max3.8V
Power Dissipation139W
Power Dissipation Pd139W
No. of Pins8Pins
Operating Temperature Max150°C
Product RangeOptiMOS 5
Qualification-
MSL-
SVHCNo SVHC (21-Jan-2025)
Product Overview
- 150V Optima's ™ 5 power transistor
- N-channel, normal level
- Excellent gate charge x RDS(on) product (FOM)
- Very low on-resistance RDS(on)
- Very low reverse recovery charge(Qtr.)
- Qualified according to JEDEC for target applications
- Ideal for high frequency switching and synchronous rectification
Technical Specifications
Transistor Polarity
N Channel
Drain Source Voltage Vds
150V
Drain Source On State Resistance
0.0079ohm
Transistor Case Style
TDSON
Rds(on) Test Voltage
10V
Power Dissipation
139W
No. of Pins
8Pins
Product Range
OptiMOS 5
MSL
-
Channel Type
N Channel
Continuous Drain Current Id
87A
On Resistance Rds(on)
0.0079ohm
Transistor Mounting
Surface Mount
Gate Source Threshold Voltage Max
3.8V
Power Dissipation Pd
139W
Operating Temperature Max
150°C
Qualification
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Alternatives for BSC093N15NS5ATMA1
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
