FP15R12W1T4BOMA1
IGBT Module, PIM Three Phase Input Rectifier, 28 A, 1.85 V, 130 W, 150 °C, Module

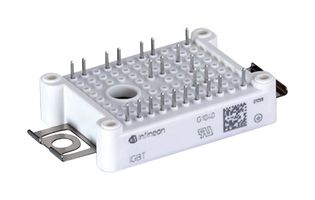

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFP15R12W1T4BOMA1
Newark Part No.13AC8729
Product RangeEasyPIM 1B Series
Technical Datasheet
24 In Stock
Need more?
2 Delivery in 1-3 Business Days(US stock)
22 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $61.430 |
| 5+ | $59.260 |
| 10+ | $57.080 |
| 25+ | $54.910 |
| 50+ | $53.560 |
| 100+ | $52.210 |
Price for:Each
Minimum: 1
Multiple: 1
$61.43
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFP15R12W1T4BOMA1
Newark Part No.13AC8729
Product RangeEasyPIM 1B Series
Technical Datasheet
IGBT ConfigurationPIM Three Phase Input Rectifier
Continuous Collector Current28A
DC Collector Current28A
Collector Emitter Saturation Voltage Vce(on)1.85V
Collector Emitter Saturation Voltage1.85V
Power Dissipation130W
Power Dissipation Pd130W
Operating Temperature Max150°C
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature, Tj Max150°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEasyPIM 1B Series
SVHCNo SVHC (21-Jan-2025)
