FS100R12PT4BOSA1
IGBT Module, Six Pack [Full Bridge], 100 A, 1.75 V, 500 W, 150 °C, Module

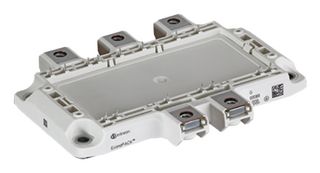

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS100R12PT4BOSA1
Newark Part No.31AJ5159
Product RangeEconoPACK 4
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 19 week(s)
| Quantity | Price |
|---|---|
| 1+ | $175.410 |
| 5+ | $167.460 |
| 12+ | $163.790 |
| 30+ | $161.040 |
Price for:Each
Minimum: 1
Multiple: 1
$175.41
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS100R12PT4BOSA1
Newark Part No.31AJ5159
Product RangeEconoPACK 4
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
Continuous Collector Current100A
DC Collector Current100A
Collector Emitter Saturation Voltage1.75V
Collector Emitter Saturation Voltage Vce(on)1.75V
Power Dissipation Pd500W
Power Dissipation500W
Operating Temperature Max150°C
Junction Temperature, Tj Max150°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage V(br)ceo1.2kV
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 4
SVHCLead (21-Jan-2025)
Technical Specifications
IGBT Configuration
Six Pack [Full Bridge]
DC Collector Current
100A
Collector Emitter Saturation Voltage Vce(on)
1.75V
Power Dissipation
500W
Junction Temperature, Tj Max
150°C
IGBT Termination
Press Fit
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
Lead (21-Jan-2025)
Continuous Collector Current
100A
Collector Emitter Saturation Voltage
1.75V
Power Dissipation Pd
500W
Operating Temperature Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage V(br)ceo
1.2kV
IGBT Technology
IGBT 4 [Trench/Field Stop]
Product Range
EconoPACK 4
