FS75R06KE3BPSA1
IGBT Module, Six Pack, 75 A, 1.45 V, 250 W, 150 °C, Module

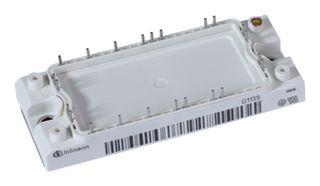

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS75R06KE3BPSA1
Newark Part No.73AJ5703
Product RangeEconoPACK Series
Technical Datasheet
11 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
View cut-off times
| Quantity | Price |
|---|---|
| 1+ | $95.020 |
| 5+ | $84.070 |
| 10+ | $73.100 |
| 30+ | $73.100 |
| 60+ | $73.090 |
Price for:Each
Minimum: 1
Multiple: 1
$95.02
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS75R06KE3BPSA1
Newark Part No.73AJ5703
Product RangeEconoPACK Series
Technical Datasheet
IGBT ConfigurationSix Pack
Continuous Collector Current75A
DC Collector Current75A
Collector Emitter Saturation Voltage Vce(on)1.45V
Collector Emitter Saturation Voltage1.45V
Power Dissipation250W
Power Dissipation Pd250W
Junction Temperature, Tj Max150°C
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT Termination-
Collector Emitter Voltage Max600V
Collector Emitter Voltage V(br)ceo600V
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK Series
SVHCTo Be Advised
Technical Specifications
IGBT Configuration
Six Pack
DC Collector Current
75A
Collector Emitter Saturation Voltage
1.45V
Power Dissipation Pd
250W
Operating Temperature Max
150°C
IGBT Termination
-
Collector Emitter Voltage V(br)ceo
600V
Transistor Mounting
Panel
SVHC
To Be Advised
Continuous Collector Current
75A
Collector Emitter Saturation Voltage Vce(on)
1.45V
Power Dissipation
250W
Junction Temperature, Tj Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage Max
600V
IGBT Technology
IGBT 3 [Trench/Field Stop]
Product Range
EconoPACK Series
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
