KITT2GC-2D-4MLITE
Evaluation Kit, CYT3DLBBHBES, Traveo T2G, 32bit, ARM Cortex-M7F, Cortex-M0+

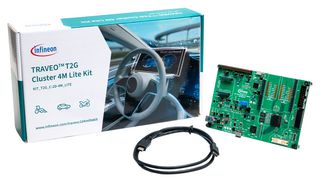

Image is for illustrative purposes only. Please refer to product description.
9 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $630.910 |
Price for:Each
Minimum: 1
Multiple: 1
$630.91
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoKITT2GC-2D-4MLITE
Newark Part No.03AM7995
Silicon ManufacturerInfineon
No. of Bits32bit
Silicon Family NameTraveo T2G
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0+, Cortex-M7F
Silicon Core NumberCYT3DLBBHBES
Kit ContentsEvaluation Board CYT3DLBBHBES, 4M Lite, USB Type-C Cable
Product Range-
SVHCTo Be Advised
Product Overview
KITT2GC-2D-4MLITE is a TRAVEO™ T2G Cluster 4M Lite Kit. It is a low-cost evaluation board for the TRAVEO™ T2G CYT3DL device with on-board Miniprog4 for program and debug functionalities. The CYUSB3014-BZXC converts the RGB display signals into USB packets. The RGB frames can then be viewed by running a media player application on a PC. Typical applications include instrument cluster, cockpit, two-wheelers, commercial, construction and agricultural vehicles (CAV).
- Pmod connector to support external RMII Ethernet Phy(DP83848)
- On-board Miniprog4 for program and debug functionalities
- On-board CYUSB3014-BZXC to stream RGB display signals to PC through USB packets
- High-speed serial memory interface using flash (S26HL) and RAM (S27KL)
- Multiple interfaces like Arduino, Mikrobus, 2x Shield-2-Go and a raspberry pi are supported
- LVDS connector to support G070Y2 FPD display
- LVDS connector to support OV5640 MIPI camera
- Potentiometer, LEDs and buttons to test basic functionalities
- Quick solution to rapidly develop an instrument cluster prototype using TRAVEO™ T2G CYT3DL device
- Display output can be viewed in PC, thereby removing the need of physical displays
Contents
KIT-T2G-C-2D-4M-LITE REV-01 board, USB Type-C to Type-C cable.
Technical Specifications
Silicon Manufacturer
Infineon
Silicon Family Name
Traveo T2G
Core Sub-Architecture
Cortex-M0+, Cortex-M7F
Kit Contents
Evaluation Board CYT3DLBBHBES, 4M Lite, USB Type-C Cable
SVHC
To Be Advised
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
CYT3DLBBHBES
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
