REFDAB11KIZSICSYSTOBO1
REF DESIGN BOARD, 11 KW CLLC DC-DC CONV ROHS COMPLIANT: YES

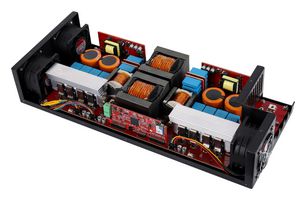

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoREFDAB11KIZSICSYSTOBO1
Newark Part No.50AJ8746
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 33 week(s)
| Quantity | Price |
|---|---|
| 1+ | $3,583.350 |
Price for:Each
Minimum: 1
Multiple: 1
$3,583.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoREFDAB11KIZSICSYSTOBO1
Newark Part No.50AJ8746
Technical Datasheet
Silicon ManufacturerInfineon
Silicon Core NumberIMZ120R030M1H, IMBF170R1K0M1, XMC4400-F100k512 BA
Kit Application TypePower Management
Application Sub TypeBi-Directional CLLC DC-DC Converter
Core ArchitectureARM
Core Sub-ArchitectureCortex-M4
Silicon Family Name-
Kit ContentsMain power board, Auxiliary power board, Controller Board
Product Range-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Silicon Manufacturer
Infineon
Kit Application Type
Power Management
Core Architecture
ARM
Silicon Family Name
-
Product Range
-
Silicon Core Number
IMZ120R030M1H, IMBF170R1K0M1, XMC4400-F100k512 BA
Application Sub Type
Bi-Directional CLLC DC-DC Converter
Core Sub-Architecture
Cortex-M4
Kit Contents
Main power board, Auxiliary power board, Controller Board
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:3A991A2
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
