LFPTXO000001
VCTCXO, 10 MHz, 1 ppm, HCMOS, 3.3 V, SMD, 7mm x 5mm, CFPT-9006 Series

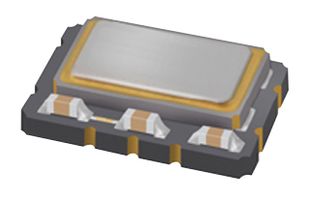

Image is for illustrative purposes only. Please refer to product description.
ManufacturerIQD FREQUENCY PRODUCTS
Manufacturer Part NoLFPTXO000001
Newark Part No.
Re-Reel97K2950
Cut Tape97K2950
Product RangeCFPT-9006-1A Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $88.550 | $88.55 |
| Total Price | $88.55 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $88.550 |
| 10+ | $86.110 |
| 25+ | $80.220 |
| 50+ | $78.300 |
| 100+ | $76.250 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerIQD FREQUENCY PRODUCTS
Manufacturer Part NoLFPTXO000001
Newark Part No.
Re-Reel97K2950
Cut Tape97K2950
Product RangeCFPT-9006-1A Series
Technical Datasheet
Frequency Nom10MHz
Frequency Stability + / -1ppm
Oscillator Output CompatibilityHCMOS
Supply Voltage Nom3.3V
Oscillator Case / PackageSMD, 7mm x 5mm
Product RangeCFPT-9006-1A Series
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (23-Jan-2024)
Product Overview
The CFPT-9006-1A series sub 1PPM performance Temperature Compensated Crystal Oscillator (TCXO) manufactured for us by Rakon utilising their Pluto™ ASIC technology. It is a single chip oscillator and analogue compensation circuit operating over an extended temperature range. Its ability to function down to a supply voltage of 2.4V and low power consumption make it particularly suitable for mobile applications.
- REACH compliant
- HCMOS Output
Applications
Portable Devices, Industrial
Technical Specifications
Frequency Nom
10MHz
Oscillator Output Compatibility
HCMOS
Oscillator Case / Package
SMD, 7mm x 5mm
Operating Temperature Min
-40°C
SVHC
No SVHC (23-Jan-2024)
Frequency Stability + / -
1ppm
Supply Voltage Nom
3.3V
Product Range
CFPT-9006-1A Series
Operating Temperature Max
85°C
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
