DBM9W4P
Combination Layout D Sub Connector, Combo D D*M Series, DB-9W4, Plug, 9 Contacts

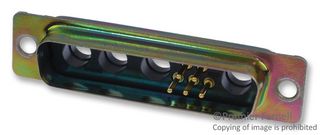

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDBM9W4P
Newark Part No.93B0910
Product RangeCombo D D*M Series
Technical Datasheet
79 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $15.150 |
| 5+ | $14.590 |
| 10+ | $14.030 |
| 25+ | $13.390 |
| 50+ | $12.250 |
| 100+ | $11.070 |
Price for:Each
Minimum: 1
Multiple: 1
$15.15
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDBM9W4P
Newark Part No.93B0910
Product RangeCombo D D*M Series
Technical Datasheet
Product RangeCombo D D*M Series
Insert ArrangementDB-9W4
No. of Signal Contacts5Contacts
No. of Contacts9Contacts
No. of Power Positions4
Contact Type5 Signal, 4 Power
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
D Sub Shell SizeDB
Connector Body MaterialSteel Body
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Product Overview
The DBM9W4P is a 4-position combination layout D-sub Plug with Yellow chromate over zinc finish steel shell and black thermoplastic, type PCT UL94V-0 insulator. The 053513-0148 through hole mount pin connector features solder termination and accepts 26 to 8AWG wire.
- 7.5A Maximum current rating signal contacts
- 500VAC at sea level Dielectric withstanding voltage
- -55 to +125°C Operating temperature range
Applications
Computers & Computer Peripherals
Technical Specifications
Product Range
Combo D D*M Series
Gender
Plug
No. of Contacts
9Contacts
Contact Type
5 Signal, 4 Power
Connector Mounting
Through Hole Mount
Connector Body Material
Steel Body
Contact Plating
Gold Plated Contacts
Insert Arrangement
DB-9W4
No. of Signal Contacts
5Contacts
No. of Power Positions
4
Contact Termination Type
Solder
D Sub Shell Size
DB
Contact Material
Copper Alloy
SVHC
To Be Advised
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:To Be Advised
