DCM8W8P

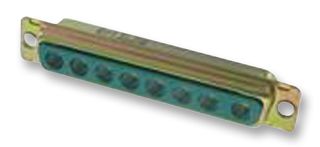

Combination Layout D Sub Connector, 680M Series, DC-8W8, Plug, 8 Contacts, 8 Power, Crimp
Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDCM8W8P
Newark Part No.73H0161
Product Range680M Series
Technical Datasheet
Available to Order by Phone
Delivery estimated post order confirmations.You will be charged on despatch.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDCM8W8P
Newark Part No.73H0161
Product Range680M Series
Technical Datasheet
Product Range680M Series
Insert ArrangementDC-8W8
No. of Signal Contacts0Contacts
No. of Contacts8Contacts
No. of Power Positions8
Contact Type8 Power
Contact Termination TypeCrimp
Connector MountingCable Mount
D Sub Shell SizeDC
Connector Body MaterialSteel Body
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Product Overview
The DCM8W8P is a 8-way D-sub Plug with gold-plated copper alloy contacts. The COMBO series 053514-0247 plug accepts 26 to 8AWG wire. It has a black PCT thermoplastic insulator and steel shell with yellow chromate over zinc finish.
- 7.5A Maximum current rating (signal contacts)
- UL94V-0 Flammability rating
- 50 mating cycles Durability
Applications
Industrial, Computers & Computer Peripherals
Technical Specifications
Product Range
680M Series
Gender
Plug
No. of Contacts
8Contacts
Contact Type
8 Power
Connector Mounting
Cable Mount
Connector Body Material
Steel Body
Contact Plating
Gold Plated Contacts
Insert Arrangement
DC-8W8
No. of Signal Contacts
0Contacts
No. of Power Positions
8
Contact Termination Type
Crimp
D Sub Shell Size
DC
Contact Material
Copper Alloy
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:To Be Advised
