DDM24W7PK87
Combination Layout D Sub Connector, 680M Series, DD-24W7, Plug, 24 Contacts, 17 Signal, 7 Power

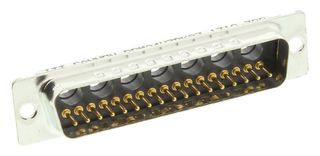

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDDM24W7PK87
Newark Part No.51R5879
Product Range680M Series
Technical Datasheet
96 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $24.920 |
| 5+ | $24.450 |
| 10+ | $23.900 |
| 25+ | $23.300 |
| 50+ | $22.760 |
| 100+ | $22.380 |
| 250+ | $21.980 |
Price for:Each
Minimum: 1
Multiple: 1
$24.92
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDDM24W7PK87
Newark Part No.51R5879
Product Range680M Series
Technical Datasheet
Product Range680M Series
Insert ArrangementDD-24W7
No. of Signal Contacts17Contacts
No. of Contacts24Contacts
No. of Power Positions7
Contact Type17 Signal, 7 Power
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
D Sub Shell SizeDD
Connector Body MaterialMetal Body
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Product Overview
The DDM24W7PK87 is a 7-position combination layout D-sub Plug with flash gold-plated copper alloy contacts and tin-finished steel shell. The 053515-1144 through hole mount pin connector features black thermoplastic, type PCT UL94V-0 insulator, solder termination and accepts 26 to 8AWG wire.
- 7.5A Maximum current rating signal contacts
- 10mΩ Maximum contact resistance
- -55 to +150°C Operating temperature range
Applications
Computers & Computer Peripherals
Technical Specifications
Product Range
680M Series
Gender
Plug
No. of Contacts
24Contacts
Contact Type
17 Signal, 7 Power
Connector Mounting
Through Hole Mount
Connector Body Material
Metal Body
Contact Plating
Gold Plated Contacts
Insert Arrangement
DD-24W7
No. of Signal Contacts
17Contacts
No. of Power Positions
7
Contact Termination Type
Solder
D Sub Shell Size
DD
Contact Material
Copper Alloy
SVHC
To Be Advised
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
