108-0907-001

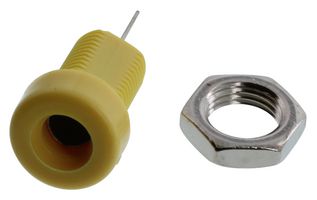

Banana Test Connector, Jack, Panel Mount, 15 A, 7 kV, Tin Plated Contacts, Yellow
Image is for illustrative purposes only. Please refer to product description.
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No108-0907-001
Newark Part No.39F1579
Technical Datasheet
9,180 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.730 |
| 10+ | $1.510 |
| 50+ | $1.340 |
| 100+ | $1.280 |
| 250+ | $1.200 |
| 500+ | $1.140 |
| 1000+ | $1.090 |
| 2500+ | $0.996 |
Price for:Each
Minimum: 1
Multiple: 1
$1.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No108-0907-001
Newark Part No.39F1579
Technical Datasheet
GenderJack
Connector MountingPanel Mount
Current Rating15A
Voltage Rating7kV
Contact PlatingTin Plated Contacts
Connector ColourYellow
Contact MaterialBrass
Contact Termination TypeSolder
Product Range-
SVHCLead
Product Overview
The 108-0907-001 is a yellow insulated solder terminal Banana Jack with bright tin plated brass body, nickel plated unassembled nut, threaded nylon body withstands a 6.0lbs.inch (7kg.cm) of thread stripping force for panel thickness up to 8.8mm and is keyed mounting with double flats, accepts up to 16 gauge wire.
- 15A Current
- 7000Vrms Minimum breakdown voltage
- 0.010Ω Maximum contact resistance
- Nylon UL approved for self extinguishing
Applications
Defence, Military & Aerospace, Signal Processing
Technical Specifications
Gender
Jack
Current Rating
15A
Contact Plating
Tin Plated Contacts
Contact Material
Brass
Product Range
-
Connector Mounting
Panel Mount
Voltage Rating
7kV
Connector Colour
Yellow
Contact Termination Type
Solder
SVHC
Lead
