108-0913-001
Banana Test Connector, Jack, Panel Mount, 15 A, 7 kV, Tin Plated Contacts, Grey

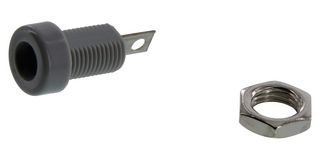

Image is for illustrative purposes only. Please refer to product description.
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No108-0913-001
Newark Part No.39F1585
Technical Datasheet
1,625 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.060 |
| 10+ | $1.810 |
| 50+ | $1.620 |
| 100+ | $1.550 |
| 250+ | $1.450 |
| 500+ | $1.370 |
| 1000+ | $1.310 |
| 2500+ | $1.220 |
Price for:Each
Minimum: 1
Multiple: 1
$2.06
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No108-0913-001
Newark Part No.39F1585
Technical Datasheet
GenderJack
Connector MountingPanel Mount
Current Rating15A
Voltage Rating7kV
Contact PlatingTin Plated Contacts
Connector ColourGrey
Contact MaterialBrass
Contact Termination TypeSolder
Product Range-
SVHCLead
Product Overview
The 108-0913-001 is a Banana Jack made of gray nylon 6/6 (as per ASTM D4066) with bright tin formed brass (as per QQ-B-626D) contacts. This panel mount jack features insulated solder terminal and keyed mounting with double flats. It accepts up to 16 gauge wire and comes with a nickel plated nut hardware.
- 0.01Ω Contact resistance
- Nylon UL approved for self extinguishing
Applications
Test & Measurement
Technical Specifications
Gender
Jack
Current Rating
15A
Contact Plating
Tin Plated Contacts
Contact Material
Brass
Product Range
-
Connector Mounting
Panel Mount
Voltage Rating
7kV
Connector Colour
Grey
Contact Termination Type
Solder
SVHC
Lead
Technical Docs (2)
Alternatives for 108-0913-001
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
