SWPR-001T-P025
Contact, Socket, Crimp, 22 AWG, Tin Plated Contacts, JWPF Connectors

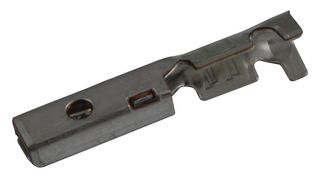

Image is for illustrative purposes only. Please refer to product description.
ManufacturerJST / JAPAN SOLDERLESS TERMINALS
Manufacturer Part NoSWPR-001T-P025
Newark Part No.
Full Reel92AH6123
Re-Reel71C1891
Cut Tape71C1891
Your Part Number
712,737 In Stock
Need more?
73057 Delivery in 1-3 Business Days(US stock)
155880 Delivery in 2-4 Business Days(UK stock)
Order before 6pm
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $0.189 | $0.19 |
| Total Price | $0.19 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $0.189 |
| 10+ | $0.171 |
| 25+ | $0.162 |
| 50+ | $0.156 |
| 100+ | $0.151 |
| 250+ | $0.138 |
| 500+ | $0.126 |
| 1000+ | $0.113 |
Full Reel
| Quantity | Price |
|---|---|
| 6000+ | $0.066 |
| 10000+ | $0.063 |
| 14000+ | $0.060 |
| 50000+ | $0.056 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerJST / JAPAN SOLDERLESS TERMINALS
Manufacturer Part NoSWPR-001T-P025
Newark Part No.
Full Reel92AH6123
Re-Reel71C1891
Cut Tape71C1891
Technical Datasheet
Product Range-
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Contact PlatingTin Plated Contacts
For Use WithJWPF Connectors
Wire Size AWG Min26AWG
Contact MaterialCopper Alloy
SVHCNo SVHC (25-Jun-2025)
Product Overview
The SWPR-001T-P025 from JST is a socket contact with crimp termination. It is a copper alloy contact with tin plating and used with JWPF series housing.
- Rated voltage is 100VAC/VDC and rated current is 3A
- Suitable for wire size from 26AWG to 22AWG
Technical Specifications
Product Range
-
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
26AWG
SVHC
No SVHC (25-Jun-2025)
Contact Gender
Socket
Wire Size AWG Max
22AWG
For Use With
JWPF Connectors
Contact Material
Copper Alloy
Technical Docs (2)
Alternatives for SWPR-001T-P025
1 Product Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
