2410 CAL

Source Meter / Unit, Calibrated, 2400 Series

2410 CAL - Source Meter / Unit, Calibrated, 2400 Series

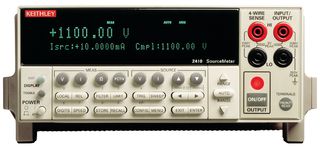

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
2410 CAL
Newark Part No.:
Product Range
2400 Series
Technical Datasheet:
2410 CAL   Datasheet
See all Technical Docs

Product Information

2400 Series

Current/Resistance/Voltage Measure, Current/Voltage Source


± 200mV to ± 1kV

± 1µA to ± 1A

0.2ohm to 200Mohm

1 Year

Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The 2410 CAL from Keithley is a 2400 series 1100V, 1A, 20W SourceMeter unit (SMU) instrument. It is designed specifically for test applications that demand tightly coupled sourcing and measurement. This SMU provides precision voltage & current sourcing as well as measurement capabilities. It includes both a highly stable DC power source and true instrument grade 6.5 digit multimeter. The power source characteristics include low noise, precision and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single channel, DC parametric tester. In operation, it can act as voltage source, current source, voltage meter, current meter & ohmmeter. Manufacturers of components & modules for communications, semiconductor, computer, automotive and medical industries will find SMU units invaluable for wide range of characterization & production test applications. It is compatible with Keithley LabTracer 2.0 I-V curve tracing application software.
  • Calibrated SourceMeter unit
  • Power of five instruments in one (IV source, IVR measure), source and sink (4-quadrant) operation
  • Available high speed sense lead contact check function
  • 0.012% basic measure accuracy with 6.5 digit resolution, 1700 readings/second at 4.5 digits via GPIB
  • 2, 4, 6-wire remote V-source & measure sensing, standard SCPI GPIB, RS-232, trigger link interfaces
  • Pass/fail comparator for fast sorting/binning
  • Programmable DIO port for automation/handler/prober control
  • 200.000mV to 1000.00V voltage, 1.00000µA to 1.00000A current, <0.20000 ohm to >200.000M resistance
  • 100V to 240Vrms, 50 to 60Hz power supply, 210VA power consumption, 0 to 50°C operating temperature
  • 89mm (H) x 213mm (W) x 370mm (D) dimension, 3.21Kg weight


Test & Measurement


2410 SourceMeter unit, Model 8605 test leads, LabVIEW software driver (downloadable), LabTracer software (downloadable).


During power-up, voltage spikes may appear on the terminals of the SourceMeter. These voltage spikes could be at hazardous levels (42.4V peak) and could damage sensitive DUTs.


Hazardous voltages may be present on the output and guard terminals. To prevent electrical shock that could cause injury or death, NEVER make or break connections to SourceMeter while the unit is on.
